As a pvc waterstop manufacturer, Xinxirang can provide waterstop solution. Water stop products to solve all water stop.

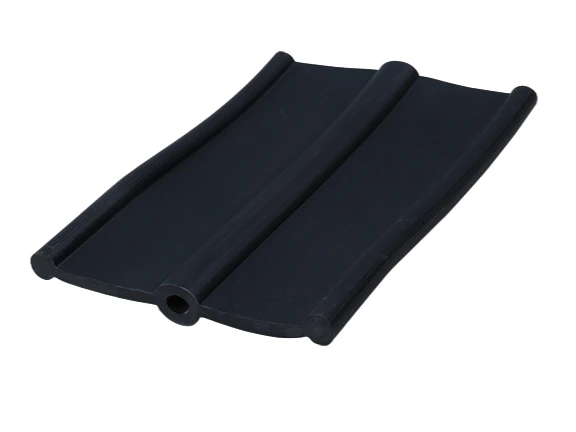

Black PVC Waterstop DB-200x8 for Concrete Internal Expansion Joints 1

Black PVC Waterstop DB-200x8 for Concrete Internal Expansion Joints 2

Black PVC Waterstop DB-200x8 for Concrete Internal Expansion Joints

The DB-200x8 PVC Waterstop is a specialized product designed for use in concrete structures to prevent water leakage. It features a unique internal expansion mechanism that ensures a tight and durable seal against water infiltration. Made from high-quality PVC material, this waterstop is known for its excellent durability, flexibility, and corrosion resistance. It is suitable for a wide range of concrete construction applications, including but not limited to dams, tunnels, basements, and other water-retaining structures. The internal expansion design allows the waterstop to adapt to movements and cracks in the concrete, maintaining an effective barrier against water. Overall, the DB-200x8 PVC Waterstop is a reliable and efficient solution for ensuring the waterproof integrity of concrete structures.

Material:

PVC (Polyvinyl chloride)

Color:

Black, it can customize any colors.

Width:

200 mm

Length:

25mtrs per roll.

Packing size (Volume):

58cmX58cmX25cm

Inquiry

Write a Review

Product description

Protect your concrete structures from water damage with our high-quality Black PVC Waterstop DB-200x8, designed with excellent tensile strength and ductility. This double bell 200mm waterstop provides superior elasticity to resist shear forces, making it ideal for applications in sewage treatment tanks, dams, and more. Its resistance to harsh elements like seawater and acids ensures long-lasting durability without discoloring the concrete.

Product parameter

● The FDA Extraction Toxicity Tests with 21 CFR 175.300. British Standards BS 2782:320A test results

STANDARDCOMPLIANCE
BS 2782:320A	Hong Kong General Specification for Civil Engineering Works clause 16.80
U.S.Corps of Engineers CRD-C572-74	China GB/T 1040-1992
PROPERTIES
Form	Extruded thermoplastic sections
Colour	Black
Solid content	100%
Density	1409kg/m3
Hardness	78.0IRHD
Tensile strength	14 N/mm2
Elongation at bleak point	300%
Toxicity	non-toxic1

Product Advantages

Black PVC Waterstop DB-200x8 for Concrete Internal Expansion Joints 5

Superior Waterproofing Performance

The Black PVC Waterstop DB-200x8 effectively seals joints, preventing water infiltration and ensuring long-term structural integrity.

Durable and Flexible

This product is specially designed for concrete internal expansion joints with its DB Type double bell 200mm waterstop feature, providing reliable waterproofing solutions.

Long-lasting Protection

The Black PVC Waterstop DB-200x8 offers superior durability and flexibility for construction projects, ensuring long-lasting protection against water damage.

Easy Installation

This product is easy to install and provides a reliable solution for construction projects requiring superior waterproofing performance in concrete internal expansion joints.

Waterproofing Reinforcement Technology

The Black PVC Waterstop DB-200x8 for Concrete Internal Expansion Joints offers exceptional strength and flexibility, making it capable of withstanding shear forces and lateral pressure within joints. Its inherent elasticity allows it to endure corrosive elements such as seawater, sewage, acids, and chlorinated water without deteriorating. This double bell 200mm waterstop is easy to weld and embed on-site, ensuring convenient installation. It is a reliable choice for a variety of applications including sewage treatment tanks, swimming pools, dams, reservoirs, basement structures, tunnels, and roof slabs.

FAQ

What is the Black PVC Waterstop DB-200x8 used for?

The Black PVC Waterstop DB-200x8 is used for concrete internal expansion joints to prevent water infiltration.

How does the Black PVC Waterstop DB-200x8 work?

The waterstop is inserted into the concrete joint and expands to create a watertight seal as the concrete expands and contracts.

In what applications can the Black PVC Waterstop DB-200x8 be used?

The waterstop can be used in a variety of applications such as bridges, tunnels, basements, and water treatment plants.

Is the Black PVC Waterstop DB-200x8 easy to install?

Yes, the waterstop is easy to install. It can be easily inserted into the concrete joint and does not require special tools.

Can the Black PVC Waterstop DB-200x8 withstand harsh weather conditions?

Yes, the waterstop is designed to withstand harsh weather conditions and is resistant to chemicals, oils, and UV exposure.

How long does the Black PVC Waterstop DB-200x8 last?

The waterstop has a long lifespan and can provide reliable waterproofing for many years, even in high-traffic areas.
