As a pvc waterstop manufacturer, Xinxirang can provide waterstop solution. Water stop products to solve all water stop.

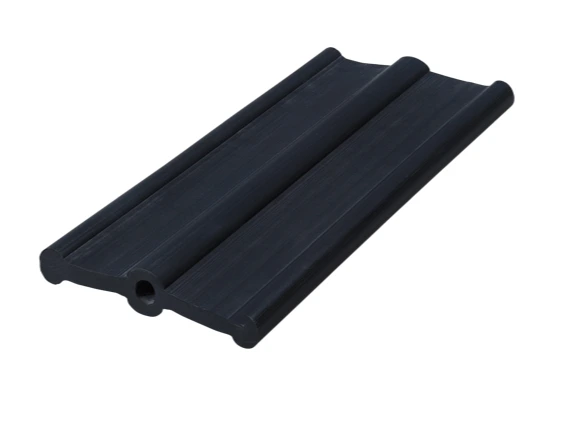

PVC Internal Expansion Waterstop DB-140x10 for Concrete - Unique Design 1

PVC Internal Expansion Waterstop DB-140x10 for Concrete - Unique Design 2

PVC Internal Expansion Waterstop DB-140x10 for Concrete - Unique Design

The DB-140x10 PVC Waterstop is a specialized waterproofing product designed for internal concrete constructions, utilizing the expansion properties of PVC material upon contact with water to form a reliable barrier against water infiltration. Crafted from high-quality PVC, it boasts durability, chemical resistance, and ease of installation, making it suitable for a wide range of applications such as basements, tunnels, pools, dams, and other concrete structures requiring robust waterproofing solutions. the DB-140x10 ensures effective sealing of joints and cracks, maintaining structural integrity and long-term waterproof performance.

Material:

PVC (Polyvinyl chloride)

Color:

Black, it can customize any colors.

Width:

140 mm

Length:

25mtrs per roll.

Packing size (Volume):

58cmX58cmX25cm

Inquiry

Write a Review

Product description

The PVC Internal Expansion Waterstop DB-140x10 is a trustworthy solution for preventing water leakage in concrete structures, thanks to its durable PVC material and unique design. With its ability to accommodate movement during construction and service life, this waterstopper is a reliable choice for ensuring watertightness. Its ease of use and simple on-site jointing make installation a breeze, saving time and effort for construction projects.

Product parameter

● The FDA Extraction Toxicity Tests with 21 CFR 175.300. British Standards BS 2782:320A test results

STANDARDCOMPLIANCE
BS 2782:320A	Hong Kong General Specification for Civil Engineering Works clause 16.80
U.S.Corps of Engineers CRD-C572-74	China GB/T 1873.2-2014
PROPERTIES
Form	Extruded thermoplastic sections
Colour	Black
Solid content	100%
Density	1409kg/m3
Hardness	78.0IRHD
Tensile strength	14 N/mm2
Elongation at bleak point	300%
Toxicity	non-toxic1

Product Advantages

PVC Internal Expansion Waterstop DB-140x10 for Concrete - Unique Design 5

Superior Water Resistance

The PVC Internal Expansion Waterstop DB-140x10 for Concrete offers excellent water resistance due to its high-quality PVC material.

Reliable Durability

This waterstop bar is known for its superior durability, ensuring long-lasting protection against water leakage.

Tight Seal Construction

Its innovative design provides a tight seal, guaranteeing a secure solution for preventing water infiltration in concrete structures.

Exceptional Quality

Made with the finest materials, this waterstop bar boasts exceptional quality and reliable performance for various construction applications.

Innovative PVC Waterstop Design

The PVC Internal Expansion Waterstop DB-140x10 for Concrete is designed with a unique structure that allows it to accommodate movement during both construction and service life, ensuring long-lasting effectiveness. Its simple on-site jointing feature makes it easy to use, saving time and effort during installation. This waterstopper PVC product provides reliable protection against water infiltration, making it essential for concrete structures.

FAQ

What is PVC Internal Expansion Waterstop DB-140x10 used for?

The PVC Internal Expansion Waterstop DB-140x10 is designed for use in concrete structures to prevent the passage of water through joints.

How does the unique design of the PVC Internal Expansion Waterstop DB-140x10 work?

This waterstop features internal expansion ribs that create a tight seal when installed in concrete joints, preventing water infiltration.

Can the PVC Internal Expansion Waterstop DB-140x10 be used in all concrete structures?

Yes, this waterstop is suitable for use in a variety of concrete structures, including swimming pools, basements, water treatment plants, and more.

Is the PVC Internal Expansion Waterstop DB-140x10 easy to install?

Yes, this waterstop is designed for easy installation in concrete joints. Simply place it in the joint and secure it in place using an adhesive or mechanical fasteners.

How long will the PVC Internal Expansion Waterstop DB-140x10 last?

The PVC material used in this waterstop is durable and resistant to corrosion, ensuring a long lifespan and reliable performance in concrete structures.

Are there any special maintenance requirements for the PVC Internal Expansion Waterstop DB-140x10?

No, this waterstop is low maintenance and does not require any special care once installed in the concrete structure. It will continue to provide effective waterproofing without the need for regular maintenance.
