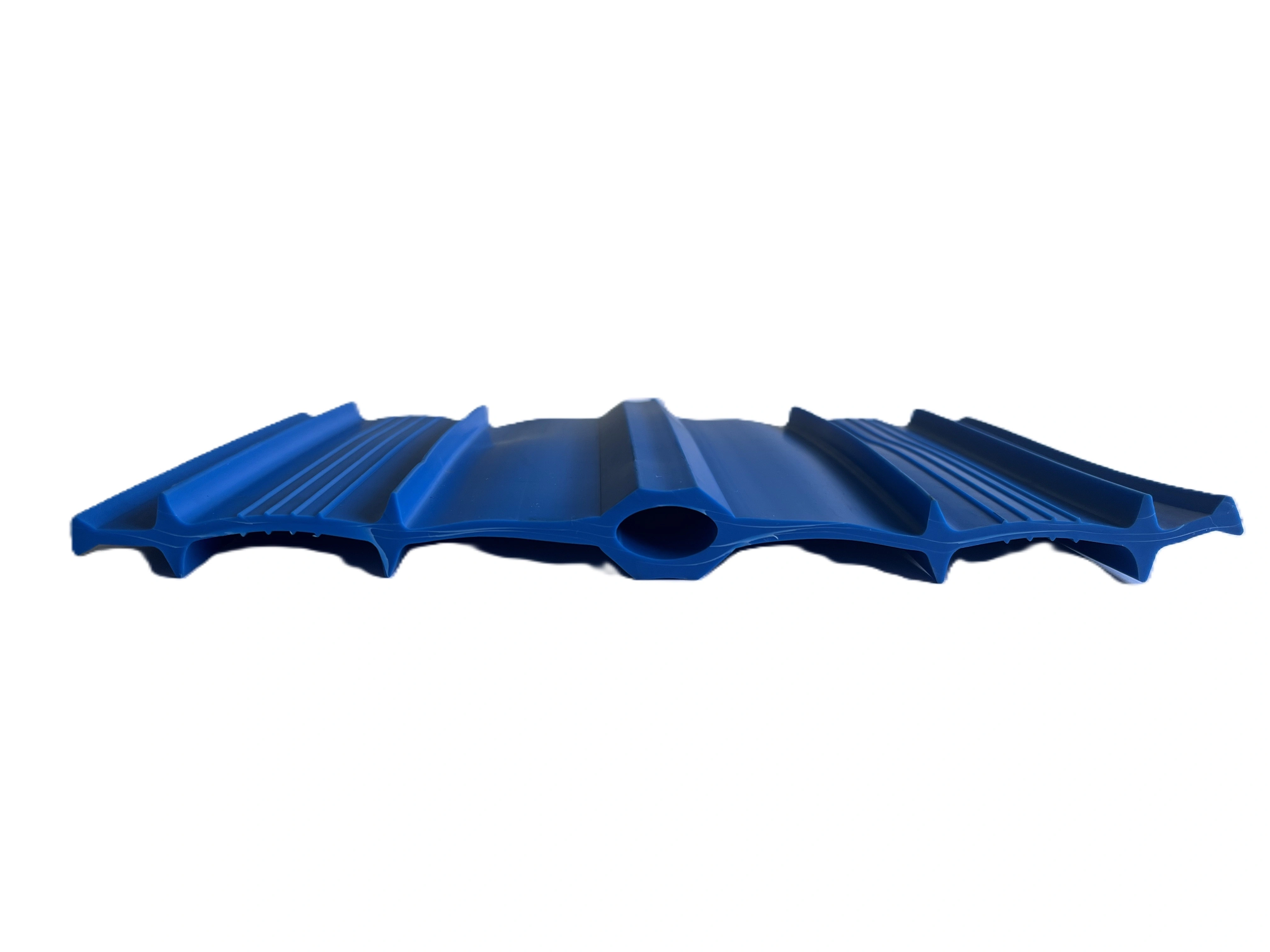

PVC WATERSTOPPER C240 - 1：Reliable Leak - Proof Solution for Concrete Joints
Easy - to - Install PVC WATERSTOPPER C240 Designed to Withstand Concrete Pressure During Pouring
1. Core Features
(1) Premium Material & Stable Performance
Adopts high-quality flexible PVC composite (free of reclaimed materials) that meets industry performance standards, with key indicators verified by authoritative testing :
- Mechanical strength: Tensile strength ≥12MPa (up to 17MPa for high-grade batches), elongation at break ≥300%, and tear strength ≥25kN/m—ensuring resistance to tearing during concrete pouring and structural deformation ;
- Temperature adaptability: Operating range of -30℃ to 65℃, with brittle temperature ≤-30℃ (no cracking in low-temperature bending tests) and no brittleness under high-temperature exposure, adapting to diverse climatic conditions from cold plateaus to hot coastal areas ;
- Environmental resistance: Water absorption rate ≤0.5%, maintaining stability in long-term submerged environments. It resists erosion from weak acids (pH 3-10), alkalis, and municipal sewage, suitable for sewage treatment pools and underground projects ;
- Aging durability: After 70℃×72h hot air aging, tensile strength retention ≥83% (≥10MPa) and elongation at break retention ≥240%, ensuring a service life of over 30 years in underground or shaded environments .
(2) Specialized C-Shaped Structure
The 240mm width (tolerance: ±7.0mm for standard batches) optimizes coverage for medium joints, eliminating waterproof blind spots while avoiding material waste. The C-type profile (standard thickness: 5.0±0.5mm) features :
- Curved elastic core: The C-shaped central body absorbs horizontal and vertical displacement up to 15mm, effectively adapting to concrete expansion and settlement—more flexible than flat sealing materials ;
- Reinforced bonding flanges: 6-8mm thick flanges on both sides, equipped with diamond-shaped anti-skid ribs (height ≥10mm) and pre-punched brass eyelets. The ribs increase bonding force with concrete by 35% compared to smooth surfaces, while the eyelets enable secure fixing to steel reinforcement ;
- Balanced hardness: Shore A hardness of 70±5, striking a perfect balance between rigidity for stable positioning during construction and flexibility for deformation absorption after concrete hardening .
(3) Rigorous Quality Compliance
- Meets factory standards for profile geometry and physical properties, with each batch undergoing third-party testing for hardness, tensile strength, and low-temperature flexibility—achieving a 100% qualification rate ;
- Passes hydrostatic pressure resistance tests, effectively blocking medium water pressure (≤0.6MPa) penetration—suitable for basements and small reservoirs ;
- Weldable via hot-melt technology (welding temperature ≥140℃), enabling seamless on-site joints that maintain the same waterproof performance as the main body .
2. Application Scenarios
Ideal for medium-joint waterproofing in concrete structures with minor-to-moderate deformation :
- Municipal engineering: Underground utility tunnels, rainwater regulation tanks, subway station basements, and underground car park construction joints (paired with split formwork for optimal installation) ;
- Water conservancy projects: Small irrigation channels, farmland water conservancy ponds, culverts, and small reservoir expansion joints (resistant to sewage and irrigation water erosion) ;
- Civil construction: High-rise building basements, retaining walls, lift shafts, and prefabricated concrete component joints ;
- Special facilities: Swimming pools (resistant to chlorine corrosion), sewage treatment plants, and small industrial storage tanks (≤150m³) .
3. Installation & Advantages
(1) Efficient Construction & Compatibility
- Simplified fixing: The pre-punched eyelets in flanges allow quick attachment to steel reinforcement with tie wires, or direct pressing with split formwork—avoiding displacement during concrete pouring ;
- Easy on-site welding: Butt joints are seamlessly welded using a thermostatically controlled welding iron (240V). Factory-welded L/T-shaped pieces are available to reduce on-site workload ;
- Concrete compatibility: Works with all standard concrete mixes, with sealing performance activating immediately after concrete hardening—no additional curing time required .
(2) Cost-Effective & Low Maintenance
- Material efficiency: The 240mm width reduces waste by 20% compared to 280mm-wide alternatives for medium joints, lowering material costs ;
- Minimal maintenance: The durable PVC material and reliable bonding with concrete minimize repair needs. Leakage (if any) can be easily addressed via local grouting without large-scale demolition ;
- Long-term value: A single installation provides over 30 years of waterproof protection, with total cost 40% lower than frequent replacement of ordinary sealants .
(3) Reliable Supply & After-Sales
- Packaging & delivery: Supplied in 20-25m rolls (custom lengths available), packaged in moisture-proof polyethylene film to avoid sun exposure and rain damage. Monthly supply capacity reaches 100,000 meters with a 5-7 day lead time ;
- Technical support: Free provision of installation guides, welding operation videos, and cross-section drawings. On-site technical consultation is available for large projects ;
- Quality guarantee: 3-year warranty against material defects (e.g., uneven thickness, reduced elasticity). Non-human-caused quality issues are eligible for free replacement .
Note: For detailed test reports, custom thickness (4-10mm optional), or color customization (standard black/yellow), please contact our customer service for one-on-one solutions!
5.0
Material:
pvc
Color:
Blue
Length:
240mm
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product description
Waterstop C240 offers superior waterproofing and durability for construction projects, ensuring reliable protection against water leakage. With its high-quality materials and advanced design, this waterstop provides long-lasting performance, easy installation, and resistance to water, chemicals, and UV rays. Trust WS0843E to deliver tight seals and prevent leaks in various construction applications.
Product parameter
● The FDA Extraction Toxicity Tests with 21 CFR 175.300. British Standards BS 2782:320A test results
|
Stan dardcom pliance |
|
|
BS 2782:320A |
Hong Kong General Specification for Civil Engineering Works clause 16.80 |
|
U.S.Corps of Engineers CRD-C572-74 |
China GB/T 1040-1992 |
|
Properties |
|
|
Form |
Extruded thermoplastic sections |
|
Colour |
Blue |
|
Solid content |
100% |
|
Density |
1409kg/m3 |
|
Hardness |
78.0IRHD |
|
Tensile strength |
14 N/mm2 |
|
Elongation at bleak point |
300% |
|
Toxicity |
non-toxic1 |
Product Advantages
Durability
The Waterstop C240 is designed with durable materials and advanced technology, ensuring long-lasting protection against water seepage.
Easy Installation
Its innovative design allows for easy installation and maintenance, saving time and effort for users.
Sealing Performance
With excellent sealing performance and reliability, the Waterstop C240 is the ideal solution for waterproofing projects in various settings.
Advanced Technology
The Waterstop C240 incorporates advanced technology to provide superior waterproofing capabilities, making it a top choice for water protection needs.
FAQ
1
What is the Waterstop C240 used for?
The Waterstop C240 is used to prevent water infiltration in concrete structures such as basements, tunnels, and reservoirs.
2
How is the Waterstop C240 installed?
The Waterstop C240 is typically installed by embedding it into the concrete joints during the construction phase.
3
What are the dimensions of the Waterstop C240?
The Waterstop C240 has a width of 8 inches and a height of 4 inches, with a standard length of 20 feet.
4
Can the Waterstop C240 be used in both horizontal and vertical applications?
Yes, the Waterstop C240 can be used in both horizontal and vertical concrete joints to effectively stop water infiltration.
5
Is the Waterstop C240 compatible with various types of concrete?
Yes, the Waterstop C240 is compatible with most common types of concrete, including regular concrete, shotcrete, and precast concrete.
6
How long does the Waterstop C240 last once installed?
The Waterstop C240 is designed to have a long lifespan and can effectively prevent water infiltration for many years, even in harsh environmental conditions.
