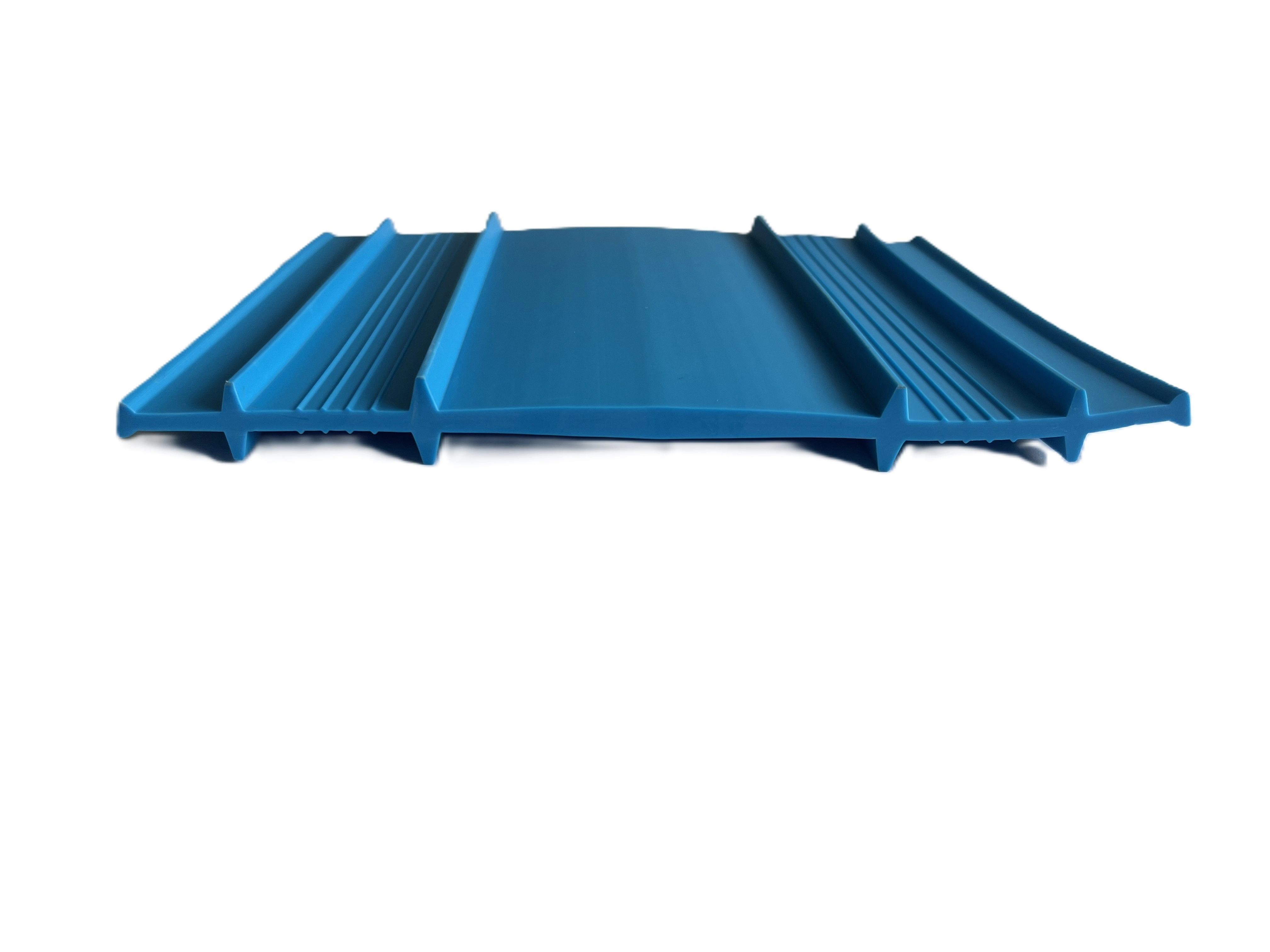

PVC WATERSTOPPER W180-1 - High - quality Leakproof Solution for Concrete Joints
Leakproof PVC WATERSTOPPER W180-1 - Suitable for Concrete Joints in Basements, Tunnels and Bridges
- Excellent Material Performance: Made of high-quality PVC composite material, it has good corrosion resistance and can resist the erosion of sewage and common chemical media in underground environments. It maintains good elasticity within the temperature range of -35℃ to 60℃, without brittleness at low temperatures or softening at high temperatures. Its tensile strength is ≥10MPa, elongation at break is ≥250%, water absorption rate is ≤0.5%, and hardness (Shore A) is ≥65. All performance indicators meet the requirements of GB/T 18173.2-2014 Polymer Waterproof Materials - Part 2: Waterstops.
- Reasonable Structural Design: Adopting a W-shaped cross-section design, the middle rib enhances the longitudinal tensile deformation capacity of the waterstop, while the flanges on both sides increase the contact area with concrete, effectively blocking water seepage channels. The anti-slip convex pattern on the surface further improves the bonding force with concrete, preventing displacement during concrete pouring.
- Convenient Construction: The waterstop can be cut arbitrarily according to the length of the joint. During installation, it can be fixed with steel clamps or template pressing, without the need for special tools. The joints can be connected using special PVC adhesive or thermal welding to ensure the integrity of the waterproof system. It has good compatibility with the concrete pouring process and can effectively shorten the construction period.
5.0
Material:
PVC
Color:
BLUE
Length:
180MM
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product description
Waterstop W180 offers superior waterproofing and durability for construction projects, ensuring reliable protection against water leakage. With its high-quality materials and advanced design, this waterstop provides long-lasting performance, easy installation, and resistance to water, chemicals, and UV rays. Trust WS0843E to deliver tight seals and prevent leaks in various construction applications.
Product parameter
● The FDA Extraction Toxicity Tests with 21 CFR 175.300. British Standards BS 2782:320A test results
|
Stan dardcom pliance |
|
|
BS 2782:320A |
Hong Kong General Specification for Civil Engineering Works clause 16.80 |
|
U.S.Corps of Engineers CRD-C572-74 |
China GB/T 1040-1992 |
|
Properties |
|
|
Form |
Extruded thermoplastic sections |
|
Colour |
Blue |
|
Solid content |
100% |
|
Density |
1409kg/m3 |
|
Hardness |
78.0IRHD |
|
Tensile strength |
14 N/mm2 |
|
Elongation at bleak point |
300% |
|
Toxicity |
non-toxic1 |
Product Advantages
Durability
The Waterstop W180 is designed with durable materials and advanced technology, ensuring long-lasting protection against water seepage.
Easy Installation
Its innovative design allows for easy installation and maintenance, saving time and effort for users.
Sealing Performance
With excellent sealing performance and reliability, the Waterstop W180 is the ideal solution for waterproofing projects in various settings.
Advanced Technology
The Waterstop W180 incorporates advanced technology to provide superior waterproofing capabilities, making it a top choice for water protection needs.
FAQ
1
What is the Waterstop W180 used for?
The Waterstop W180 is used to prevent water infiltration in concrete structures such as basements, tunnels, and reservoirs.
2
How is the Waterstop W180 installed?
The Waterstop W180 is typically installed by embedding it into the concrete joints during the construction phase.
3
What are the dimensions of the Waterstop W180?
The Waterstop W180 has a width of 8 inches and a height of 4 inches, with a standard length of 20 feet.
4
Can the Waterstop W180 be used in both horizontal and vertical applications?
Yes, the Waterstop W180 can be used in both horizontal and vertical concrete joints to effectively stop water infiltration.
5
Is the Waterstop W180 compatible with various types of concrete?
Yes, the Waterstop W180 is compatible with most common types of concrete, including regular concrete, shotcrete, and precast concrete.
6
How long does the Waterstop W180 last once installed?
The Waterstop W180 is designed to have a long lifespan and can effectively prevent water infiltration for many years, even in harsh environmental conditions.
