As a pvc waterstop manufacturer, Xinxirang can provide waterstop solution. Water stop products to solve all water stop.

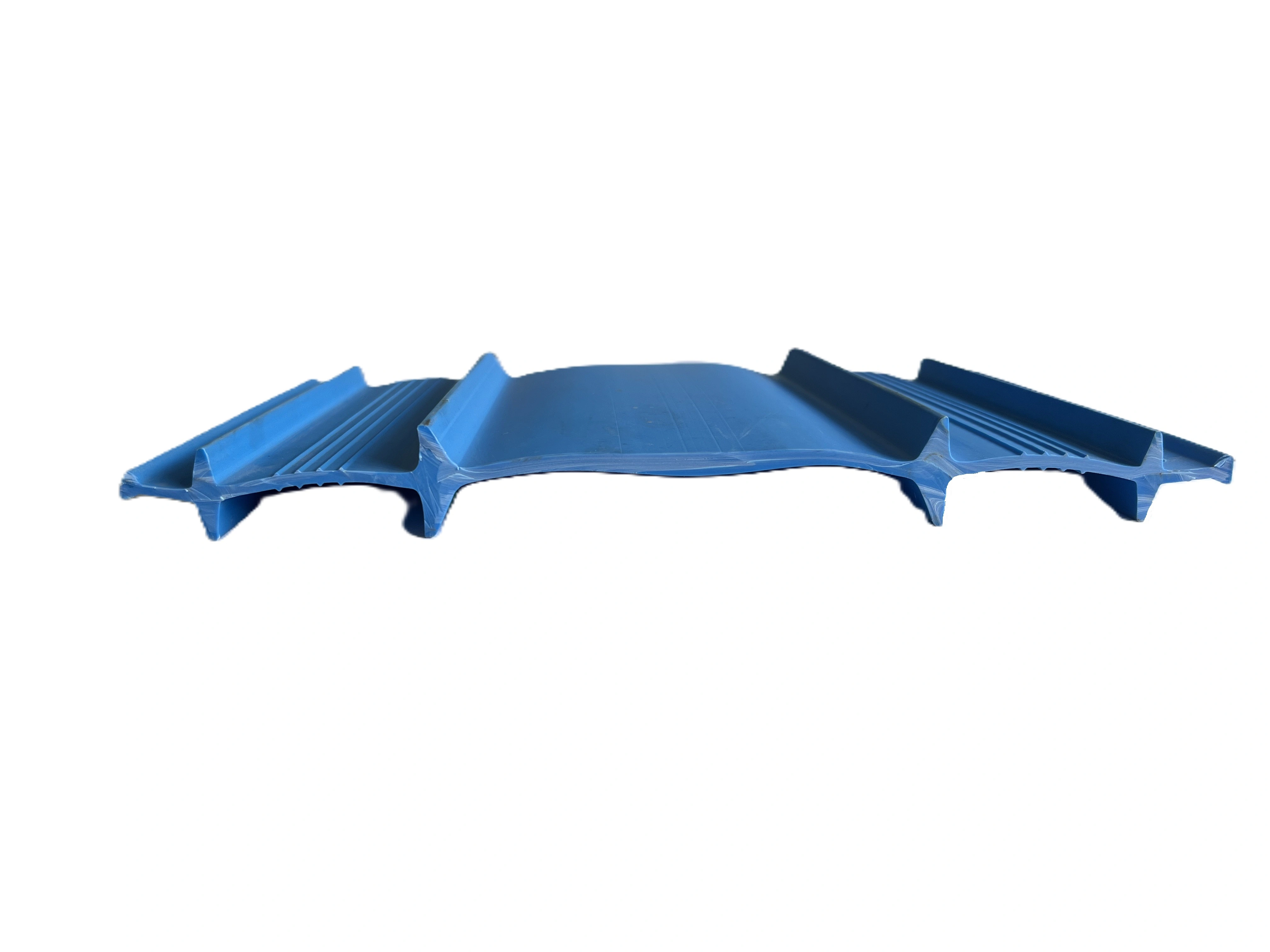

PVC WATERSTOPPER WB250-1 Leakproof for Concrete Basement Joints 1

PVC WATERSTOPPER WB250-1 Leakproof for Concrete Basement Joints 2

PVC WATERSTOPPER WB250-1 Leakproof for Concrete Basement Joints 3

PVC WATERSTOPPER WB250-1 Leakproof for Concrete Basement Joints 4

PVC WATERSTOPPER WB250-1 Leakproof for Concrete Basement Joints

Leakproof Flexible PVC WATERSTOPPER WB250-1 - Fit for Basement Concrete Joints

Ideal for projects with medium-width joints and moderate waterproof demands, including:

Municipal engineering: Underground utility tunnel construction joints, rainwater regulation tank circumferential seams, and subway station platform expansion joints ;

Water conservancy projects: Small reservoir dam joints, irrigation channel connection seams, and culvert expansion joints ;

Civil construction: High-rise building basement floor/wall joints, retaining wall expansion seams, and prefabricated component connections ;

Industrial facilities: Workshop floor joints, medium-sized storage tank seams, and sewage treatment pool structural joints .

It performs reliably in environments with medium water pressure (≤0.4MPa), alternating dry-wet cycles, or mild chemical exposure.

3. Installation and Advantages

Efficient Construction: The 250mm width and flexible texture allow easy cutting and bending for linear, curved, and corner joints . Installation uses simple steel bar clamping or template pressing , while joints are sealed via hot welding or PVC adhesive for system integrity. Compatibility with standard concrete pouring reduces construction time by 15-20% compared to complex waterproof systems.

Cost-Effective Durability: Insoluble in water and oils , the product maintains performance for over 30 years under normal use , minimizing maintenance costs. Its medium-width design balances material efficiency and coverage, offering 25% higher cost-effectiveness than wider alternatives for medium-joint projects.

Reliable Quality Assurance: Each batch undergoes third-party testing for tensile strength, low-temperature flexibility, and corrosion resistance . Packaged in 20m or 25m rolls with moisture-proof film, it ensures easy transportation and on-site handling, fully meeting GB 50208-2022 Code for Acceptance of Construction Quality of Building Waterproofing Engineering requirements.

Material:

PVC

Color:

BLUE

Length:

250MM

Inquiry

Write a Review

Product description

Waterstop WB250 offers superior waterproofing and durability for construction projects, ensuring reliable protection against water leakage. With its high-quality materials and advanced design, this waterstop provides long-lasting performance, easy installation, and resistance to water, chemicals, and UV rays. Trust WS0843E to deliver tight seals and prevent leaks in various construction applications.

Product parameter

● The FDA Extraction Toxicity Tests with 21 CFR 175.300. British Standards BS 2782:320A test results

Stan dardcom pliance
BS 2782:320A	Hong Kong General Specification for Civil Engineering Works clause 16.80
U.S.Corps of Engineers CRD-C572-74	China GB/T 1040-1992
Properties
Form	Extruded thermoplastic sections
Colour	Blue
Solid content	100%
Density	1409kg/m3
Hardness	78.0IRHD
Tensile strength	14 N/mm2
Elongation at bleak point	300%
Toxicity	non-toxic1

Product Advantages

PVC WATERSTOPPER WB250-1 Leakproof for Concrete Basement Joints 7

Durability

The Waterstop WB250 is designed with durable materials and advanced technology, ensuring long-lasting protection against water seepage.

Easy Installation

Its innovative design allows for easy installation and maintenance, saving time and effort for users.

Sealing Performance

With excellent sealing performance and reliability, the Waterstop WB250 is the ideal solution for waterproofing projects in various settings.

Advanced Technology

The Waterstop WB250 incorporates advanced technology to provide superior waterproofing capabilities, making it a top choice for water protection needs.

FAQ

What is the Waterstop WB250 used for?

The Waterstop WB250 is used to prevent water infiltration in concrete structures such as basements, tunnels, and reservoirs.

How is the Waterstop WB250 installed?

The Waterstop WB250 is typically installed by embedding it into the concrete joints during the construction phase.

What are the dimensions of the Waterstop WB250?

The Waterstop WB250 has a width of 8 inches and a height of 4 inches, with a standard length of 20 feet.

Can the Waterstop WB250 be used in both horizontal and vertical applications?

Yes, the Waterstop WB250 can be used in both horizontal and vertical concrete joints to effectively stop water infiltration.

Is the Waterstop WB250 compatible with various types of concrete?

Yes, the Waterstop WB250 is compatible with most common types of concrete, including regular concrete, shotcrete, and precast concrete.

How long does the Waterstop WB250 last once installed?

The Waterstop WB250 is designed to have a long lifespan and can effectively prevent water infiltration for many years, even in harsh environmental conditions.
