As a pvc waterstop manufacturer, Xinxirang can provide waterstop solution. Water stop products to solve all water stop.

PVC WATERSTOPPER WO230-1 Leakproof for Concrete Basement Joints 1

PVC WATERSTOPPER WO230-1 Leakproof for Concrete Basement Joints 2

PVC WATERSTOPPER WO230-1 Leakproof for Concrete Basement Joints 3

PVC WATERSTOPPER WO230-1 Leakproof for Concrete Basement Joints 4

PVC WATERSTOPPER WO230-1 Leakproof for Concrete Basement Joints

Leakproof Flexible PVC WATERSTOPPER WO230-1 - Fit for Basement Concrete Joints

1. Core Features

Premium Material Performance: Adopting high-quality flexible PVC composite, the product achieves a tensile strength of ≥10MPa and an elongation at break of ≥250%, fully complying with GB/T 18173.2-2014 Polymer Waterproof Materials - Part 2: Waterstops . It maintains excellent elasticity within the temperature range of -35℃ to 60℃, with no cracking in low-temperature bending tests and no brittleness under high temperatures . The water absorption rate is ≤0.5%, ensuring stable performance even in long-term humid environments , and it exhibits strong resistance to acids, alkalis, salts, and common chemical media .

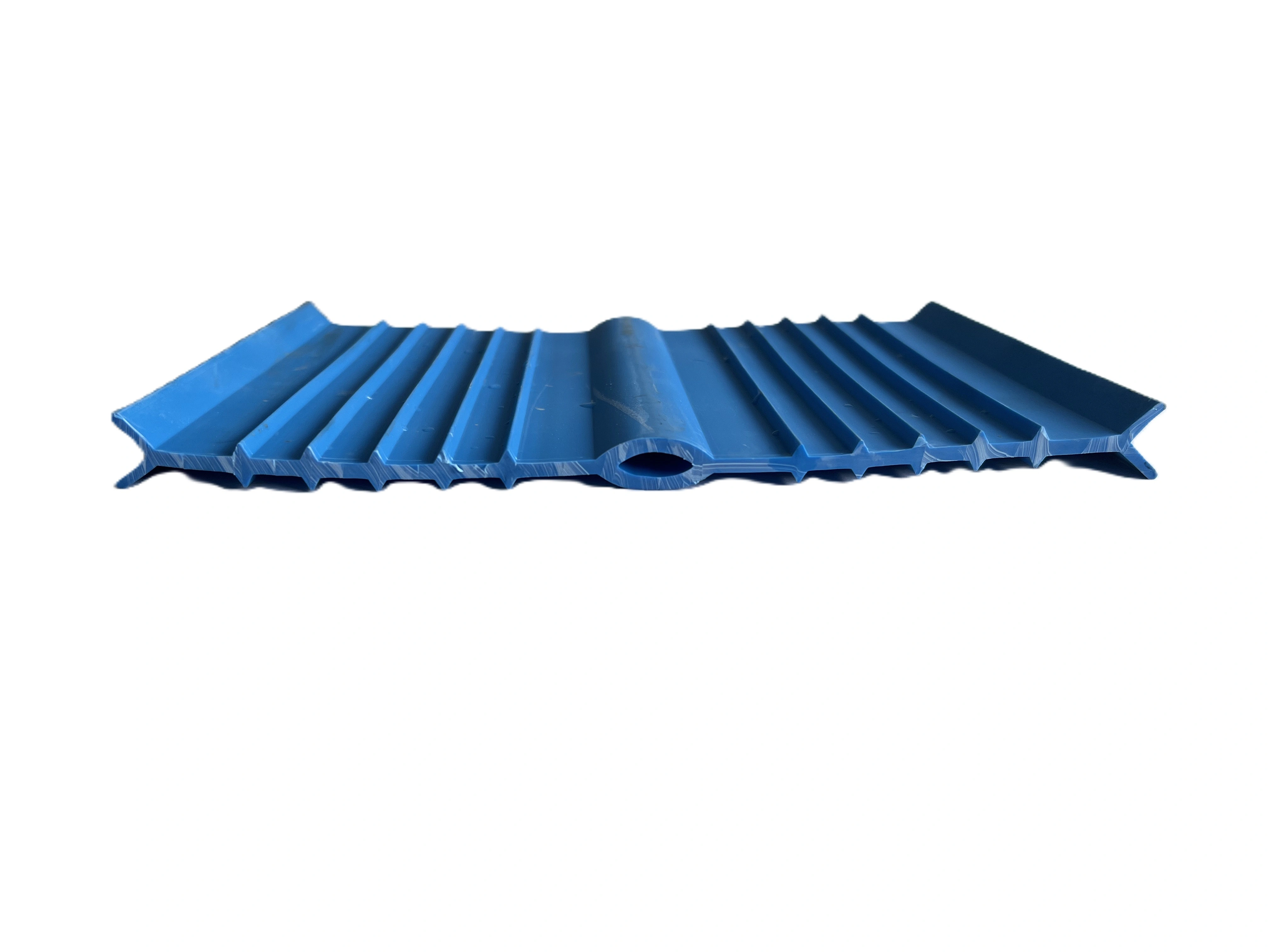

Specialized WO-Type Structure: The 230mm width design provides comprehensive coverage of standard and medium-width structural joints. The WO-type cross-section combines an O-shaped central core and reinforced wings: the O-core enhances radial compression and deformation capacity to accommodate structural settlement, while the extended wings with anti-skid convex lines increase friction with concrete, preventing displacement during pouring . The thickness ranges from 5mm to 8mm (customizable) to adapt to different water pressure conditions , and the multi-rib profile of the wings forms an impenetrable barrier against water migration .

Rigorous Performance Compliance: The Shore A hardness measures 65±5, and after 72 hours of hot air aging at 100℃, the tensile strength retention rate exceeds 80%, demonstrating superior anti-aging properties . It meets the acceptance requirements of JGJ 333-2014 Technical Specification for Waterproofing of Underground Engineering for installation and durability , with a flammability rating of V-0 for enhanced safety .

2. Application Scenarios

The product is ideal for various engineering scenarios requiring reliable joint waterproofing, including:

Water conservancy projects: Reservoir walls, culvert expansion joints, and irrigation channel connection seams ;

Underground engineering: Metro station platform settlement joints, underground utility tunnel construction joints, and basement exterior wall expansion joints ;

Municipal & industrial projects: Sewage treatment tank circumferential seams, swimming pool structural joints, and chemical workshop floor joints ;

Civil construction: High-rise building basement floor joints and retaining wall expansion joints .

It performs exceptionally well in environments with long-term water pressure, alternating dry-wet conditions, or mild chemical erosion .

3. Installation and Advantages

Efficient Construction: The material is flexible and can be cut arbitrarily according to joint lengths, easily adapting to linear, curved, and corner shapes . Installation is achievable via steel bar clamping or formwork pressing without special tools. Joint connections can be site-welded with a welding knife or bonded with specialized PVC adhesive, ensuring the integrity of the waterproof system . It is highly compatible with concrete pouring processes, effectively shortening the construction period .

Cost-Effective Durability: With strong resistance to microbial erosion and insolubility in water and common oils , the product maintains stable performance for over 30 years under normal use, significantly reducing long-term maintenance costs . Compared to rubber waterstops, it offers higher cost-effectiveness and is more suitable for large-area applications .

Reliable Quality Assurance: Each batch undergoes third-party testing for tensile strength, low-temperature flexibility, and chemical resistance . The finished products are packaged in 20m or 25m rolls (customizable) for convenient transportation and on-site use , fully meeting the acceptance standards of GB 50108-2008 Technical Specification for Waterproofing of Underground Engineering .

Material:

pvc

Color:

Blue

Length:

230mm

Inquiry

Write a Review

Product description

Waterstop WO230 offers superior waterproofing and durability for construction projects, ensuring reliable protection against water leakage. With its high-quality materials and advanced design, this waterstop provides long-lasting performance, easy installation, and resistance to water, chemicals, and UV rays. Trust WS0843E to deliver tight seals and prevent leaks in various construction applications.

Product parameter

● The FDA Extraction Toxicity Tests with 21 CFR 175.300. British Standards BS 2782:320A test results

Stan dardcom pliance
BS 2782:320A	Hong Kong General Specification for Civil Engineering Works clause 16.80
U.S.Corps of Engineers CRD-C572-74	China GB/T 1040-1992
Properties
Form	Extruded thermoplastic sections
Colour	Blue
Solid content	100%
Density	1409kg/m3
Hardness	78.0IRHD
Tensile strength	14 N/mm2
Elongation at bleak point	300%
Toxicity	non-toxic1

Product Advantages

PVC WATERSTOPPER WO230-1 Leakproof for Concrete Basement Joints 7

Durability

The Waterstop WO230 is designed with durable materials and advanced technology, ensuring long-lasting protection against water seepage.

Easy Installation

Its innovative design allows for easy installation and maintenance, saving time and effort for users.

Sealing Performance

With excellent sealing performance and reliability, the Waterstop WO230 is the ideal solution for waterproofing projects in various settings.

Advanced Technology

The Waterstop WO230 incorporates advanced technology to provide superior waterproofing capabilities, making it a top choice for water protection needs.

FAQ

What is the Waterstop WO230 used for?

The Waterstop WO230 is used to prevent water infiltration in concrete structures such as basements, tunnels, and reservoirs.

How is the Waterstop WO230 installed?

The Waterstop WO230 is typically installed by embedding it into the concrete joints during the construction phase.

What are the dimensions of the Waterstop WO230?

The Waterstop WO230 has a width of 8 inches and a height of 4 inches, with a standard length of 20 feet.

Can the Waterstop WO230 be used in both horizontal and vertical applications?

Yes, the Waterstop WO230 can be used in both horizontal and vertical concrete joints to effectively stop water infiltration.

Is the Waterstop WO230 compatible with various types of concrete?

Yes, the Waterstop WO230 is compatible with most common types of concrete, including regular concrete, shotcrete, and precast concrete.

How long does the Waterstop WO230 last once installed?

The Waterstop WO230 is designed to have a long lifespan and can effectively prevent water infiltration for many years, even in harsh environmental conditions.
