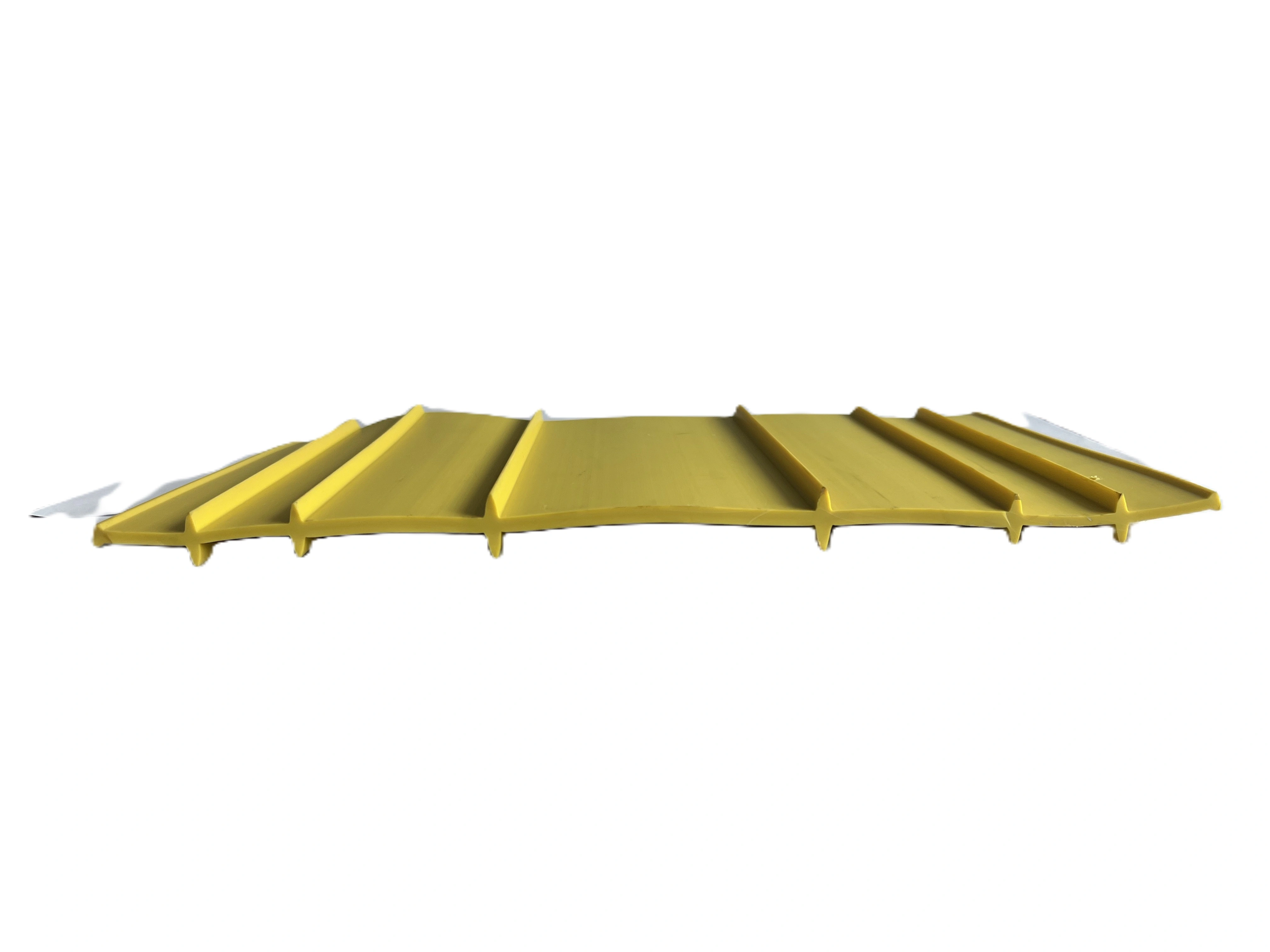

PVC WATERSTOPPER WW320-1 Leakproof for Concrete Basement Building Joints

Leakproof Flexible PVC WATERSTOPPER WW320-1 - Fit for Outdoor Basement Concrete Joints

Product Overview

1. Core Features

Material Performance: The product adopts high-quality PVC composite material, which has excellent corrosion resistance and can resist the erosion of common chemical media in sewage and underground environments . It maintains good elasticity in the temperature range of -35℃ to 60℃, with no cracking in low-temperature bending and no brittleness in high-temperature environment . The water absorption rate is ≤0.5%, ensuring stable performance in humid environments for a long time .

Structural Design: The 320mm ultra-wide design fully covers the large-size construction joints and deformation seams, and the surface is designed with anti-skid convex lines to increase the bonding force with concrete and avoid displacement during pouring . The cross-section adopts a "double-wing + middle rib" structure: the middle rib enhances the longitudinal tensile deformation capacity, and the extended wings improve the contact area with concrete, effectively blocking the seepage channel . The thickness is 6-8mm (customizable), which meets the bearing requirements of medium and high water pressure environments .

Performance Parameters: The tensile strength reaches ≥10MPa, the elongation at break is ≥250%, and the Shore A hardness is 65±5, which fully complies with the requirements of GB/T 18173.2-2014 Polymer Waterproof Materials - Part 2: Waterstops . After 72 hours of hot air aging test, the tensile strength retention rate is ≥80%, and the aging resistance is superior . The unit weight is about 2.0-2.5kg/m, which balances structural stability and construction convenience .

2. Application Scenarios

It is especially suitable for engineering projects with wide joints and high waterproof requirements, including: large-scale reservoir dams and spillway structures , underground comprehensive 管廊 deformation joints , subway station platform floor expansion joints , municipal sewage treatment tank circumferential seams , and high-rise building basement outer wall construction joints . It performs well in environments with long-term water pressure, alternating dry and wet conditions, or mild chemical erosion .

3. Installation and Advantages

Efficient Construction: It can be fixed by steel bar clamping or template pressing, without special tools . The material can be cut arbitrarily according to the joint length, and the overlap joint can be bonded with special PVC adhesive to ensure the integrity of the waterproof system . It is highly compatible with the concrete pouring process, which helps to shorten the construction period .

Cost-Effective Durability: The product has strong resistance to microbial erosion and is insoluble in water and common oils . Under normal use conditions, the service life can reach more than 30 years, which significantly reduces the later maintenance and repair costs of the project . Compared with rubber waterstop，it has higher cost performance and is more suitable for large-area engineering applications .

Quality Assurance: Each batch of products has passed the third-party detection of tensile strength, low-temperature flexibility and aging resistance, and meets the acceptance standards of GB 50208-2022 Code for Acceptance of Construction Quality of Building Waterproofing Engineering .

Material:

pvc

Color:

Yellow

Length:

300mm

Inquiry

Write a Review

Product description

Waterstop WW320 offers superior waterproofing and durability for construction projects, ensuring reliable protection against water leakage. With its high-quality materials and advanced design, this waterstop provides long-lasting performance, easy installation, and resistance to water, chemicals, and UV rays. Trust WS0843E to deliver tight seals and prevent leaks in various construction applications.

Product parameter

● The FDA Extraction Toxicity Tests with 21 CFR 175.300. British Standards BS 2782:320A test results

Stan dardcom pliance
BS 2782:320A	Hong Kong General Specification for Civil Engineering Works clause 16.80
U.S.Corps of Engineers CRD-C572-74	China GB/T 1040-1992
Properties
Form	Extruded thermoplastic sections
Colour	Yellow
Solid content	100%
Density	1409kg/m3
Hardness	78.0IRHD
Tensile strength	14 N/mm2
Elongation at bleak point	300%
Toxicity	non-toxic1

Product Advantages

PVC WATERSTOPPER WW320-1 Leakproof for Concrete Basement Building Joints 7

Durability

The Waterstop WW320 is designed with durable materials and advanced technology, ensuring long-lasting protection against water seepage.

Easy Installation

Its innovative design allows for easy installation and maintenance, saving time and effort for users.

Sealing Performance

With excellent sealing performance and reliability, the Waterstop WW320 is the ideal solution for waterproofing projects in various settings.

Advanced Technology

The Waterstop WW320 incorporates advanced technology to provide superior waterproofing capabilities, making it a top choice for water protection needs.

FAQ

What is the Waterstop WW320 used for?

The Waterstop WW320 is used to prevent water infiltration in concrete structures such as basements, tunnels, and reservoirs.

How is the Waterstop WW320 installed?

The Waterstop WW320 is typically installed by embedding it into the concrete joints during the construction phase.

What are the dimensions of the Waterstop WW320?

The Waterstop WW320 has a width of 8 inches and a height of 4 inches, with a standard length of 20 feet.

Can the Waterstop WW320 be used in both horizontal and vertical applications?

Yes, the Waterstop WW320 can be used in both horizontal and vertical concrete joints to effectively stop water infiltration.

Is the Waterstop WW320 compatible with various types of concrete?

Yes, the Waterstop WW320 is compatible with most common types of concrete, including regular concrete, shotcrete, and precast concrete.

How long does the Waterstop WW320 last once installed?

The Waterstop WW320 is designed to have a long lifespan and can effectively prevent water infiltration for many years, even in harsh environmental conditions.
